Waterproof IP66 Outdoor Led Display Advertising Display Screen P4.4 P5.7 P8 Led Billboard Led Wall Video Outdoor Led Screen

Name: Waterproof IP66 Outdoor Led Display Advertising Display Screen P44 P57 P8 Led Billboard Led Wall Video Outdoor Led Screen
Brand: UHLED
Price: 1 USD

China Waterproof IP66 Outdoor Led Display Advertising Display Screen P4.4 P5.7 P8 Led Billboard Led Wall Video Outdoor Led Screen wholesale

type : LED

Brand Name : UHLED

application : Outdoor

use : advertising publish, retail store, shopping mall, display of dishes, welcome display, self-service business, exhibition hall, wayfinding, airport, subway, elevator, Restaurant & Hotel Supplies, Education, medical treatment

media available : datasheet, Photo, EDA/CAD Models, Other

color : full color

Model Number : P4.4/P5.7/P6.67

pixel density : 50625, 50625

Place of Origin : Guangdong, China

pixels : P4.4/P5.7/P6.67, P4.4/P5.7/P6.67

Product name : Outdoor Aluminum Digital Signage

Usage : Outdoor Adverting Display

Brightness : 6500-9000, 6500-9000, 6500-9000

Warranty : 5 Years

Certificate : CE/ETL/FCC/ROHS/CB/PSE

Viewing angle : 140H/120V

Cabinet material : Profile Aluminum

Life span : 100000 Huors

Cabinet size : 960*960mm

Keyword : Waterproof Outdoor LED Display Screen

Supplier Type : original manufacturer, ODM, OEM

Function : SDK

Screen Type : no touch

IP Rating : 66, 66

Lifespan (hours) : 100000h, 100000h

Panel Size : 960*960mm, 960*960mm

View Angle（H/V） : 140°/120°, 140°/120°

Specification : outdoor led display, outdoor led screen

Contact Now

Specification
Pixel Pitch：	P5.7	P6.66	P8	P10
LED Configuration：	SMD2727	SMD2727	SMD2727	SMD2727
Pixel Density	30625dot/m2	22500dot/m2	15625dot/m	10000dot/m
Module size：	480*320mm	480*320mm	480*320mm	480*320mm
Module Resolution：	84*56 dot	72*48 dot	60*40 dot	48*32dot
Cabinet Size：	96096077mm	96096077mm	96096077mm	96096077mm
Cabinet Resolution：	168*168dot	144*144dot	120*120dot	96*96dot
Cabinet Weight：	24.5kg	24.5kg	24.5kg	24.5kg
IP Rating ( front/back)：	IP66	IP66	IP66	IP66
Brightness Intensity：	>6500 CD/m2	>6500 CD/m2	>6500 CD/m2	>6500 CD/m2
Viewing Angle (H/V)：	140°/140	140°/140	140°/140	140°/140
View Distance：	＞5m	＞5m	＞5m	＞5m
Gray Scale:	14bit	14bit	14bit	14bit
Display Scale:	16.7M	16.7M	16.7M	16.7M
Brightness Adjustment:	0-100 levels adjustable	0-100 levels adjustable	0-100 levels adjustable	0-100 levels adjustable
Max.Power Consumption:	650W/㎡	650W/㎡	650W/㎡	650W/㎡
Ave.Power Consumption:	200W/㎡	200W/㎡	200W/㎡	200W/㎡
Drive Mode:	1/7S	1/6S	1/4S	1/2S
Refresh Frequency:	≥3840HZ	≥3840HZ	≥3840HZ	≥3840HZ
Gamma Correction:	-5.0~+5.0	-5.0~+5.0	-5.0~+5.0	-5.0~+5.0
Environmental:	OUTDOOR	OUTDOOR	OUTDOOR	OUTDOOR
Control Mode:	Synchronous display with control PC by DVI	Synchronous display with control PC by DVI	Synchronous display with control PC by DVI	Synchronous display with control PC by DVI
Support Input:	Composite,S- Vido,Component,VGA,DVI,H DMI,HD_SDI	Composite,S- Vido,Component,VGA,DVI,H DMI,HD_SDI	Composite,S- Vido,Component,VGA,DVI,H DMI,HD_SDI	Composite,S- Vido,Component,VGA,DVI,H DMI,HD_SDI
Operation Power:	AC100~240 50/60HZ	AC100~240 50/60HZ	AC100~240 50/60HZ	AC100~240 50/60HZ
Operating Temperature:	-20℃~+50℃	-20℃~+50℃	-20℃~+50℃	-20℃~+50℃
Operating Humidity:	10~95% RH	10~95% RH	10~95% RH	10~95% RH
Operating Life:	100,000hours	100,000hours	100,000hours	100,000hours

Full Aluminum Energy Outdoor LED Display

Waterproof IP66 Outdoor Led Display Advertising Display Screen P4.4 P5.7 P8 Led Billboard Led Wall Video Outdoor Led Screen

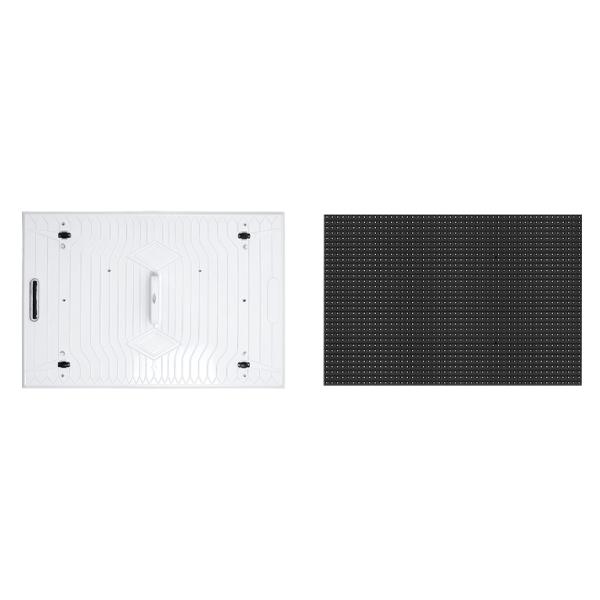

Module

Module Size：480x320mm Pixel Pitch: P4.4/P5.7/P6.66/P8/P10

Waterproof rating: IP66 Brightness: ≥6500CD

Product Details

Linear design,Concise style Grain design,perfect hierarchy

With partial power design,lower-power consumption,Max.is 650w/m²

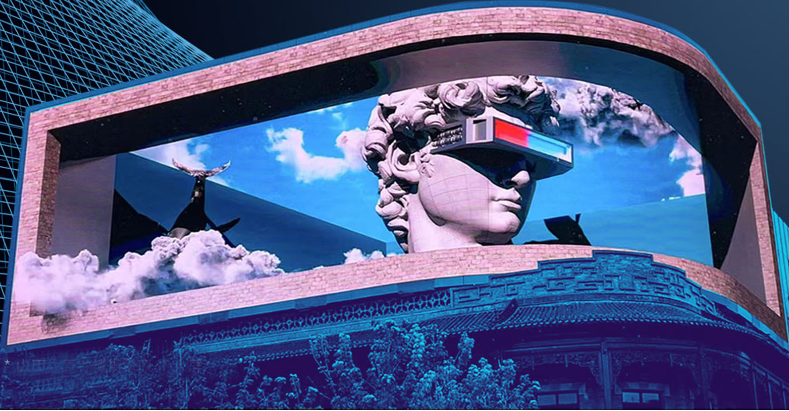

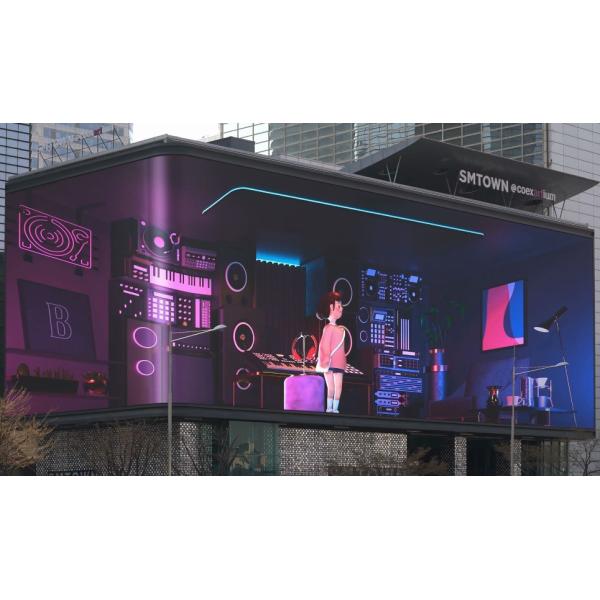

Naked Eye 3D

40x320mm Small modules,80°Curved,Support arc Splicing

Curved module design, make right angle splicing Support arc &right angle splicing

Product Characteristics

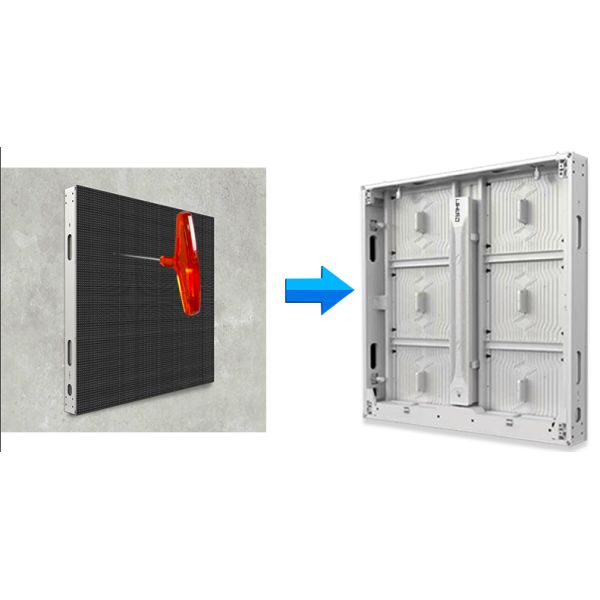

Aluminum Profile Cabinet

Aluminum cabinet, light weight, safe and reliable, no deformation.

The use of aluminum cabinets, even at high ambient temperatures, the weight of a single cabinet will not be distorted.

IP66 waterproof

IP66 waterproof No need wrapping strucre suround the screen,lower-cost

Low temperature resistance can work normally at -40℃

Accessories

Maintenance Mode

Actual Project

Factory Introduction

Waterproof IP66 Outdoor Led Display Advertising Display Screen P4.4 P5.7 P8 Led Billboard Led Wall Video Outdoor Led Screen Images
